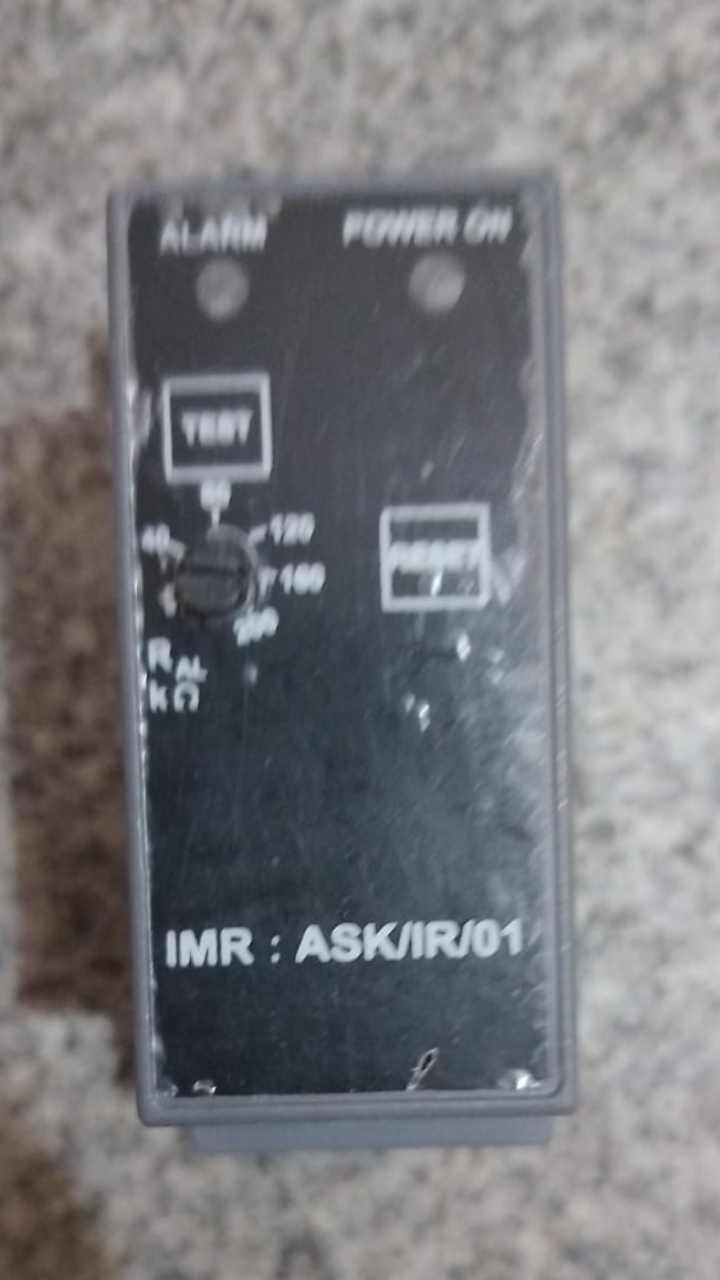

Insulation Monitoring Relay

Model: ASK-IR-01

Immutable results against vibrations and shock as per IEC-61373

Performance assured against fire incidents as per the European safety standard EN45545 HL-2

Data Sheet

ParametersSpecification
Auxiliary voltage24V-250V AC/DC
Control voltage0-500V
Frequency50/60Hz
Insulation voltage500V
Output2 C/O
Measuring range1KΩ – 150KΩ
Leakage capacitance10μF
Ambient temperature-15°C – 55°C
Electrical life100000
Mechanical life3000000
FeaturesManual and auto reset
LED indicators for operation and alarm
2 changeover contacts
Output function programmable
De-energized on trip
Humidity95
EnclosureABS
Mounting typeDIN Rail
