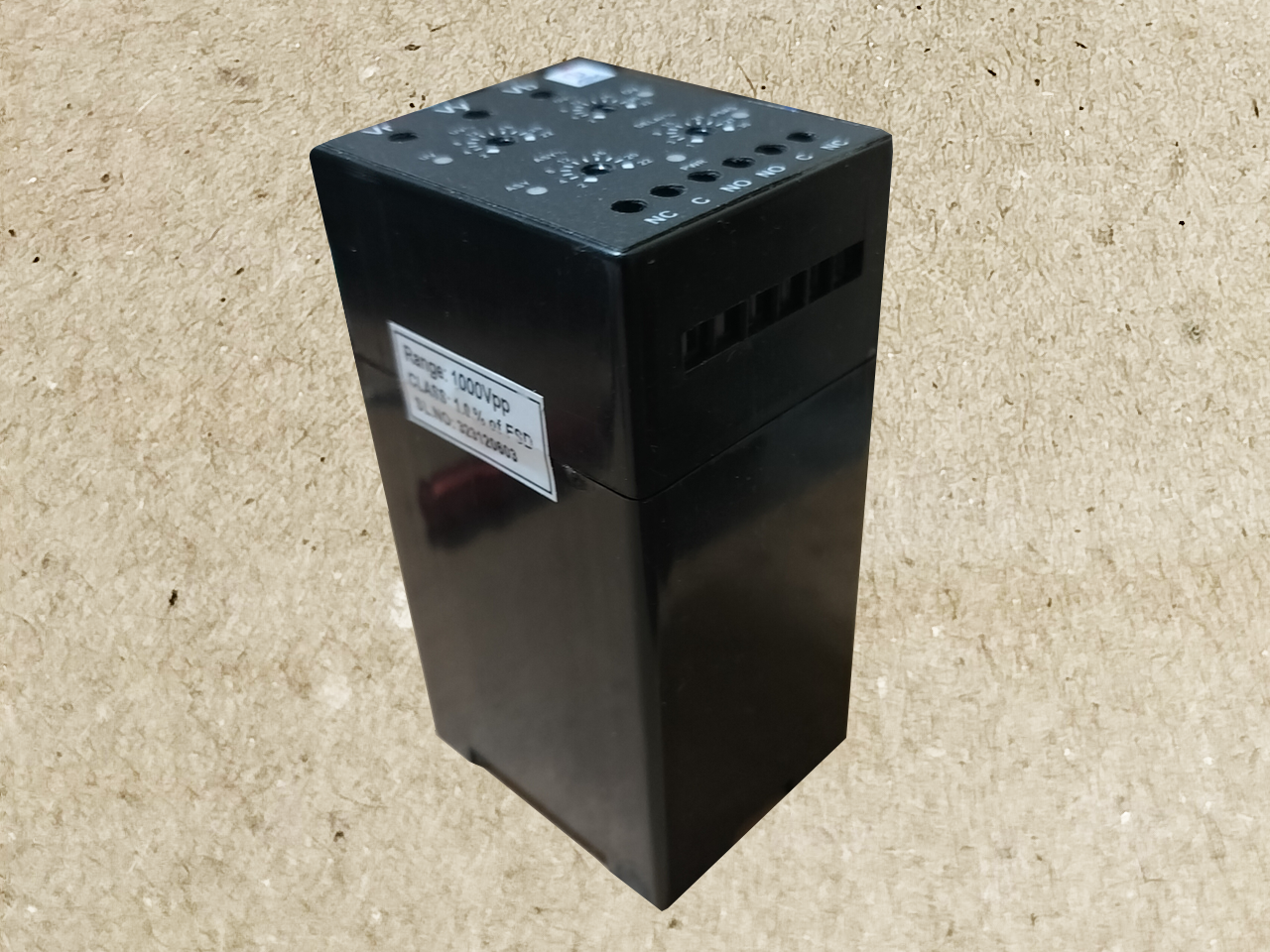

Measuring Monitoring Relay 1000V

Model: ASK-3PVM1K

Immutable results against vibrations and shock as per IEC-61373

Performance assured against fire incidents as per the European safety standard EN45545 HL-2

Data Sheet

ParametersSpecification
Auxiliary voltage110V AC/DC
Operating voltage500V-1000V (3 Phase, 3 wire)
Frequency50/60Hz
Power consumption20VA
Insulation voltage3KV
Output2 C/O
Ambient temperature-15°C – 55°C
Electrical life100000
Mechanical life3000000
Time delay0.5s – 15s on delay, 5 sec off delay
Trip settingPhase sequence and loss
Phase Asymmetry
Under voltage
Over voltage
FeaturesPhase reversal, phase asymmetry
Under voltage, over voltage
Unbalanced voltage
Time delay
Led indication for power and fault
conditions
Humidity95
EnclosureABS
